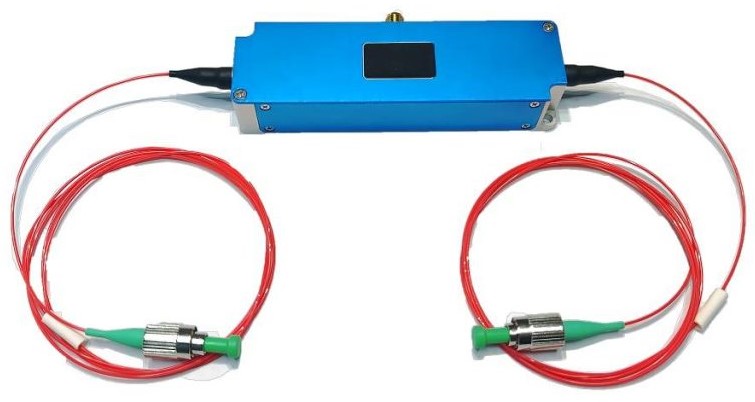

1550nm High Power Integrative Fiber AOM Series

short description:

The acousto-optic modulator is a device that uses acousto-optic interaction to control laser intensity and change frequency. It works with wavelengths from visible light to infrared and can be set to frequencies between 80-300MHz, with the ability to customize for other frequencies. It is built to handle high-power optical inputs up to 5W and can be adjusted as needed for different applications. With a sturdy all-metal design and a compact, durable seal, as well as advanced packaging technology, this product ensures reliability and temperature stability.


Product Detail

Product Tags

1550nm High Power Integral Fiber AOM Series

Characteristics

· Short response time
· Low insertion loss
· High extinction ratio
· High-temperature stability and reliability
· Small size

Application

· Q-switched fiber laser
· Laser Doppler coherent application
· Ultra-fast laser frequency reduction menu
· Linear frequency modulation

Technical Information

This indicator is a typical optical wavelength indicator, and other wavelengths and frequencies can be selected.



parameter

Unit

SGTF200-1550-1PFH(H)

SGTF300-1550-1PFH(H)

SGTF400-1550-1PFH(H)

Wavelength

nm

1530-1570

Shift frequency

MHz

200

300

400

3dB frequency shift bandwidth

MHz

>40

>60

>80

Insertion loss

dB

<3

<3

<4

Rise time

ns

<10

 <8

<6

Fiber type

-

PM1550

On-off extinction ratio

dB

≥50

Polarization extinction ratio (PM device)

dB

≥20

Polarization dependent loss (SM device)

W

≤0.5

Driving power

W

≤1.5

≤2

≤2.5

Optical fiber connector

-

FC/APC

Fiber length

m

≥1

RF input joint

-

SMA

Input impedance

Ω

50

Package

-

FH

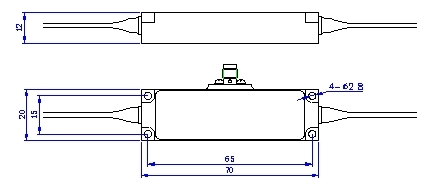

Package Specification



 FH
